Zemax 2025R1.00 includes new tolerance operand MVTP.
It gives options the Zemax users options about mechanical pivot points.


The below article explains this feature.
Optomechanical Tolerancing and Systems Engineering - Mechanical Pivot Points – Knowledgebase

However now Zemax doesn't include the sample file.
It will include from Zemax 2025R2.00
So this post provides the sample file.



@Takashi Matsumoto This operand is only usable in Premium and Enterprise versions, correct?


@Asuku
Hi Asuku

Thank you for your question.

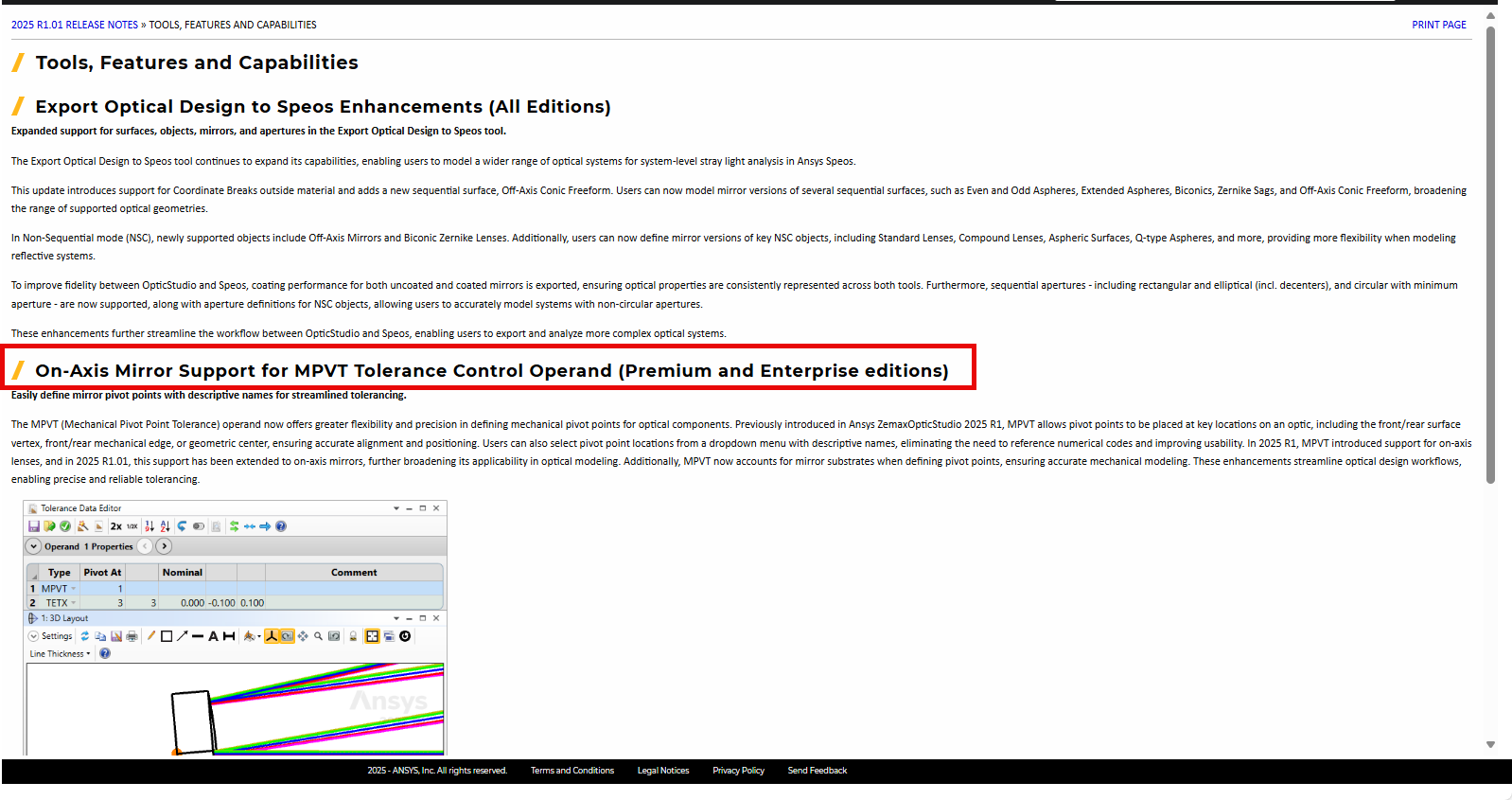

Yes MPVT operand is only for remium and Enterprise users as below.
