Matching exit and entrance pupil

  • February 9, 2022
  • 2 replies
  • 602 views

karthik
Forum|alt.badge.img

Dear All

Can any one help to match exit pupil of one lens to the entrance pupil of other one ?



Regards

Karthik

Best answer by Mark.Nicholson

I presume you want to relay the image from one lens to the image plane of the other? Use a field lens. This is a lens located at the intermediate image, with focal length set to image the first system’s exit pupil onto the entrance pupil of the second system.

View original
Did this topic help you find an answer to your question?

2 replies

Mark.Nicholson
Luminary
Forum|alt.badge.img+3

I presume you want to relay the image from one lens to the image plane of the other? Use a field lens. This is a lens located at the intermediate image, with focal length set to image the first system’s exit pupil onto the entrance pupil of the second system.


karthik
Forum|alt.badge.img
  • Author
  • Student
  • 4 replies
  • February 10, 2022

Dear Mark,

Thanks for your reply.

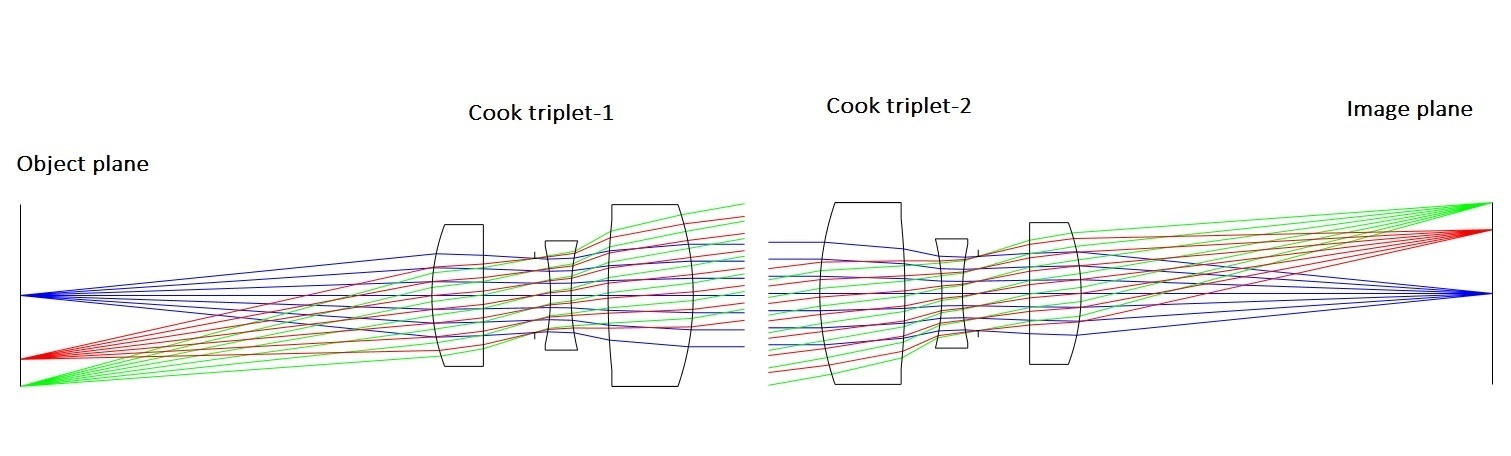

Yes, I want to relay the image from one lens to the image plane of other. I’m trying to use two sets of Cooke triplets, in which the first one at object side is in reversed configuration(Image plane towards object) and second  towards sensor. Please go through the figure attached. can I match the pupils of these two lenses ?

Mark, your videos at designopticsfast are very good and helped me a lot.
