​@Amit

You have the Zernike surfaces as well as Grid Phase surface that could be useful.

If I were you I would check the syntax of the “INT file” and check how it can be converted to one of the surfaces I mentioned.

If you give us more details about those “INT files”, we may be able to help further. Or perhaps someone else here knows about those file and can give you specific guidance.

Take care,

David

Hello ​@David.Nguyen ,

thank you for the response.

The software  manual says the INT file is a CodeV format file with the following details:
For matrix-type data, SHSWorks uses a line length of 10 entries.
The structure of the file is:
!SHSWorks generated int file
!Wave-front:
PMA INT file
GRD 59 59 WFR WVL 0.635000 SSZ 323328.611402 NDA -32767
…
For coefficients (Zernike), the structure is:
Zernike INT file
ZFR 9 SSZ 1,000000 WFR WVL 0,635000
2,42064570e-005
-1,35630975e-003
1,67079226e-002
-1,57935996e-002
1,90019919e-002
2,23541016e-003
4,19299383e-003
-1,61282936e-002
1,44345310e-002

I am guessing the easiest would be to export the Zernike data from the Measurement software and convert it to Zernike .DAT and import it back into OpticStudio. What do you think?

Best regards,
Amit

​@Amit

When looking at the Help File, you have a tool:

The File Tab » Convert Group » Convert File Formats » INT Zernike to OpticStudio DAT

I don’t know if it’ll work right away though. One thing I would be worried about is the definition of the Zernike polynomials. You have this sentence from the Help File of the tool above:

So, make sure your INT file uses this definition. I believe you’ll find the formulas under:

The Analyze Tab (sequential ui mode) » Image Quality Group » Wavefront » Zernike Fringe Coefficients

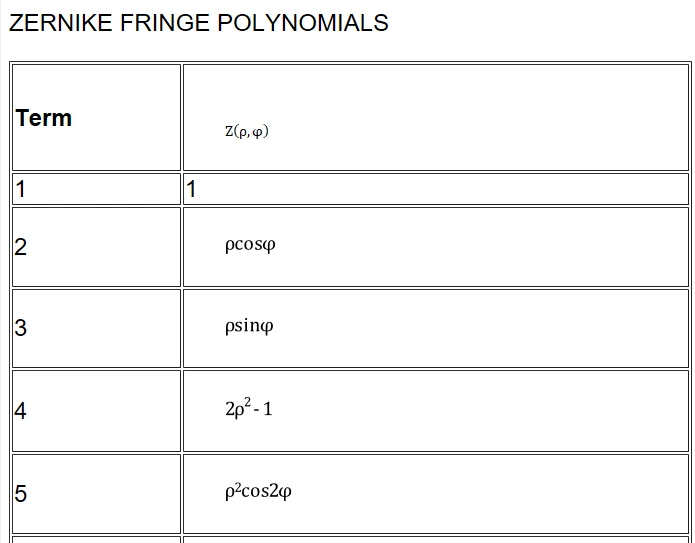

It looks like so for the first five:

I hope this helps and take care,

David
